If you’re building your own deck, the post-to-beam connection is one of the most important structural details.
It’s also one of the most misunderstood.
We’ve seen plenty of decks that look solid from the outside, but once you get into the framing, the connection between the post and beam tells a different story.
This is one of those areas where “close enough” doesn’t cut it.
So let’s walk through what actually makes a connection safe, code-compliant, and built to last.
Key Point
Following building code isn’t optional. It’s there to protect you, your family, and anyone using your deck, so always consult and strictly follow your local building codes since they can vary.
What You’re Actually Trying to Achieve
There are two things every post-to-beam connection needs to handle:
The beam must be fully supported by the post
The connection must resist movement (wind, shifting, lateral forces)
That second part is where most DIY builds fall short.
In the Trex training, they break this down clearly. It’s not just about holding weight. It’s about preventing movement over time.
Quick check:
If strong wind hits your deck, what keeps that beam from shifting sideways?
Just Because It Looks Strong Doesn’t Mean It Is
One of the most common mistakes is relying only on bolts.
For example, a beam sitting on a post and bolted through might feel solid.
But if there’s nothing preventing lateral movement, it can still fail.
That exact situation comes up in the training. It technically supports weight, but it doesn’t handle side-to-side forces.
That’s where problems start.
The Beam Needs to Sit on the Post (Not Just Be Attached to It)
This is a big one.
Your beam should always be bearing directly on the post.
Not hanging off the side
Not partially supported
Not relying only on hardware
If the beam isn’t fully supported by the post, it’s not a proper structural connection.
We see this especially with DIY builds using smaller posts or trying to fit larger beams than the post can support.

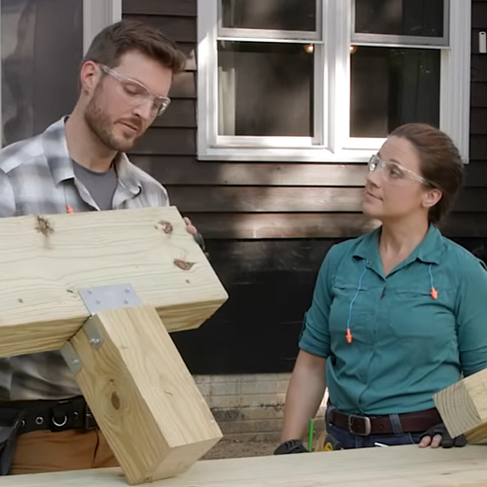

Why 4x4 Posts Can Cause Problems
A 4x4 might seem like enough, but it limits what you can support.
In the examples, a triple beam on a 4x4 fails because the beam isn’t fully supported.
That’s a common issue.
As soon as your beam gets wider, you need a larger post to properly carry that load.
In most cases, moving to a 6x6 gives you the support you actually need.
Hardware Isn’t Optional
Even when the beam is sitting correctly on the post, you still need proper hardware.
That includes:
Approved brackets
Structural fasteners
Through bolts when required
The goal is to lock everything together so it acts as one system.
In the training examples, once brackets are added, the connection becomes fully approved and stable.
Notched Posts: A Strong and Clean Option
One of the best methods shown is notching a 6x6 post so the beam sits inside it.
This gives you:
Full support under the beam
Strong lateral resistance
A clean, tight connection
Then everything is tied together with bolts and fasteners.
It’s a simple approach, but it checks every box.
This is also a method we see used often on well-built decks because it’s both strong and consistent.
Think About Movement, Not Just Weight
A deck doesn’t just sit still.
Wind, temperature changes, and daily use all create movement.
That’s why connections need to handle both vertical load and lateral force.
This is one of the biggest mindset shifts for DIY builders.
You’re not just building something that holds weight. You’re building something that stays stable over time.
Summary
Your beam should always be fully supported by the post
Connections need to resist both weight and movement
4x4 posts often limit what you can safely build
Hardware and brackets are part of the structure, not optional
Notched 6x6 posts are one of the most reliable connection methods
If you’re planning a deck and want to make sure your framing is solid from the start, stop into our showroom or bring in your plans.
We’ll help you choose the right materials and walk through your structure so you can build it with confidence.
